Router

Imports:

• Recommended: #!python3 from aiogram import Dispatcher
• Real location: #!python3 from aiogram.dispatcher.dispatcher import Dispatcher

Router does not accept any arguments in initializer so that's mean you can simply create instance:

router = Router()

Router can route update and it nested update types like messages, callback query, polls and all other event types.

Event observers

Here is used event-observer pattern. (Read more on observer page >>)

Event handlers can be registered in observer by two ways:

1. By observer method - #!python3 router.<event_type>.register(handler, <filters, ...>)
2. By decorator - #!python3 @router.<event_type>(<filters, ...>)

!!! warning

All handlers is always should be an asynchronous.
Name of handler function is not important. Event argument name is also is not important but is recommended to don't overlap the name with contextual data in due to function can not accept two arguments with the same name.

Here is list of available observers and examples how to register handlers (In examples used only @decorator-style):

Update

@router.update_handler():
async def message_handler(update: types.Update) -> Any: pass

Should be used for handling updates. By default Router is already have an update handler which route all event types to another observers.

Message

@router.message_handler():
async def message_handler(message: types.Message) -> Any: pass

Is useful for handling message

Edited message

@router.edited_message_handler():
async def edited_message_handler(edited_message: types.Message) -> Any: pass

Is useful for handling edited messages

Channel post

@router.channel_post_handler():
async def channel_post_handler(channel_post: types.Message) -> Any: pass

Is useful for handling channel posts

Edited channel post

@router.edited_channel_post_handler():
async def edited_channel_post_handler(edited_channel_post: types.Message) -> Any: pass

Is useful for handling edited channel posts

Inline query

@router.inline_query_handler():
async def inline_query_handler(inline_query: types.Message) -> Any: pass

Is useful for handling inline query

Chosen inline query

@router.chosen_inline_result_handler():
async def chosen_inline_result_handler(chosen_inline_result: types.ChosenInlineResult) -> Any: pass

Is useful for handling chosen inline query

Callback query

@router.callback_query_handler():
async def callback_query_handler(callback_query: types.CallbackQuery) -> Any: pass

Is useful for handling callback query's

Shipping query

@router.shipping_query_handler():
async def shipping_query_handler(shipping_query: types.ShippingQuery) -> Any: pass

Is useful for handling shipping query

Pre checkout query

@router.pre_checkout_query_handler():
async def pre_checkout_query_handler(pre_checkout_query: types.PreCheckoutQuery) -> Any: pass

Is useful for handling pre-checkout query

Poll

@router.poll_handler():
async def poll_handler(poll: types.Poll) -> Any: pass

Is useful for handling polls

Nested routers

!!! warning Routers by the way can be nested to an another routers with some limitations:

1. Router **CAN NOT** include itself
1. Routers **CAN NOT** be used for circular including (router 1 include router 2, router 2 include router 3, router 3 include router 1)

Example:

# module_1.py
router1 = Router()
router2 = Router()

router2.include_router(router1)

How it works?

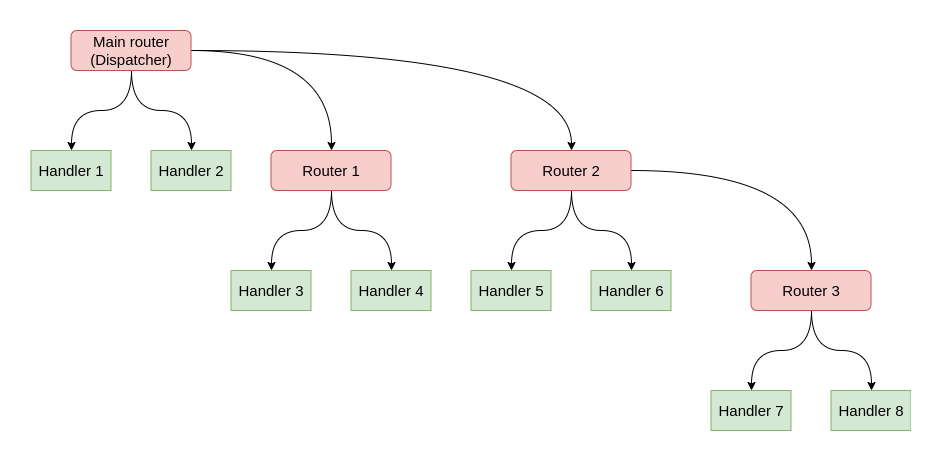

For example dispatcher has 2 routers, last one router is also have one nested router:

(Click on image to zoom it)

In this case update propagation flow will have form:

(Click on image to zoom it)
